The painful Windows10 way

NOTE: (03/12/2018) Nicole Birgel in the fb forum suggested:
- do not to use “Quick Format”
- do a “Full Format
- FB user Dean Le Blanc recently reported success with this method:
- https://www.facebook.com/groups/209280506324242/permalink/330439800874978/

I'm somewhat reluctant to share the Windows10 way of doing this, as I found it far too fiddly, and with so many steps, it increases the likelihood for making mistakes and accidentally trashing your hard-disk rather than fixing your USB stick!

Please consider the Use a 3rd party formatting tool approach rather than this, as I feel most people will find it far more straight forward.

Anyway, for what it's worth, here goes…

Initial Notes

  • Windows has a GUI-based partitioning tool called “Disk Management”, but one drawback of it is that it does not permit the removal of volumes/partitions from removable-drives such as USB sticks.
  • So for this 'volume/partition removal' step, I had to resort to a command-line tool called “diskpart
  • For the creation of new partitions on the USB stick, I jump back to the GUI-based “Disk Management” tool

Step1: Removing existing volume/partition from USB stick

  • Click the “start” button and type “cmd.exe
  • Right-click it and select “Run as administrator
  • Run the command diskpart
  • Do the list disk command to assess which disk equates to your USB stick
  Disk ###  Status         Size     Free     Dyn  Gpt
  --------  -------------  -------  -------  ---  ---
  Disk 0    Online          238 GB      0 B        *
  Disk 1    Online           15 GB      0 B
  • Ok, for me, I know my USB stick is about 16GB, so I know it is Disk 1
  • So I type “select disk 1
  • Next, I need to figure out which partition I want to delete
  • So I type “list volume
  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition    195 GB  Healthy    Boot
  Volume 1     D   LENOVO       NTFS   Partition     25 GB  Healthy
  Volume 2         SYSTEM_DRV   FAT32  Partition    260 MB  Healthy    System
  Volume 3         WINRE_DRV    NTFS   Partition   1000 MB  Healthy    Hidden
  Volume 4         LENOVO_PART  NTFS   Partition     15 GB  Healthy    Hidden
* Volume 5         NEW VOLUME   FAT32  Removable     15 GB  Healthy
  • I think it is Volume 5, as that is 15GB… But I'd like to be more confident of that…
  • So I type “select volume 5
  • Then I type “detail volume
  Disk ###  Status         Size     Free     Dyn  Gpt
  --------  -------------  -------  -------  ---  ---
* Disk 1    Online           15 GB      0 B

Read-only              : No
Hidden                 : No
No Default Drive Letter: No
Shadow Copy            : No
Offline                : No
BitLocker Encrypted    : No
Installable            : Yes

Volume Capacity        :   15 GB
Volume Free Space      :   15 GB
  • Aah good, I get some assurance early on that Volume 5 exists on Disk 1, my USB stick!
  • Now to delete this volume, I type “clean” (WARNING: be 100% sure you've selected the correct volume, as this will delete it!!)

Ok, I've now successfully deleted the sole partition off my USB stick.

Step2: Adding a simple partition via 'Disk Management' tool

  • Click the “start” button and open the “Disk Management” by right-clicking and “Run as administrator

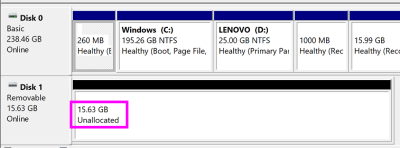

  • The USB stick's drive space should now show as being “Unallocated

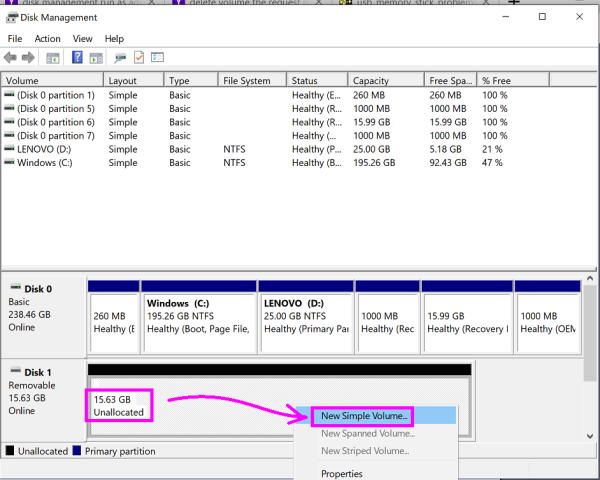

  • Now right-click Disk1 and do “New Simple Volume…

  • A wizard appears, I click “Next
  • I accept the suggested volume-size and click “Next
  • I accept the default drive-letter and click “Next
  • I change from “NTFS” to “FAT32” and click “Next

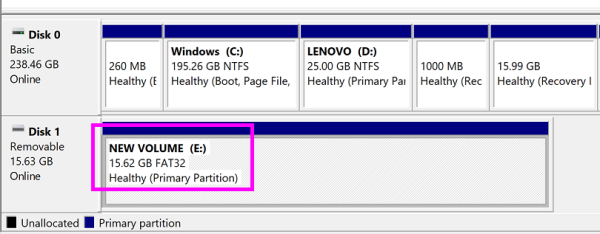

I am then finally rewarded with a single-partition FAT32 drive containing an MBR (confirmed via dd+hexdump).

Once the format is complete, copy your “THEC64-drive8.d64” file across and try it on your c64 mini.

If problems persist, let us know in either the community forum or the facebook group.
